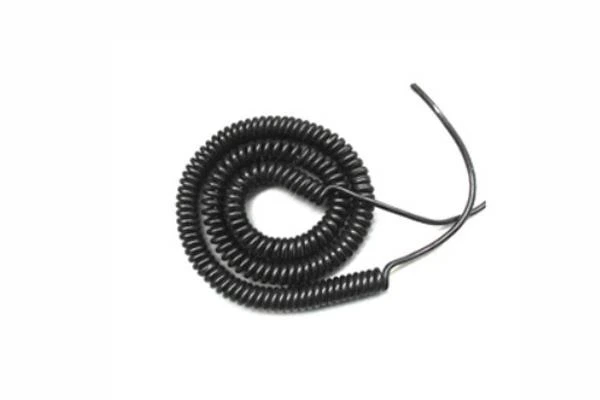

Spiral Cords
Flexibility, Elasticity, Widely used in CNC machine, Laser cutting machine.
Material
Conductor: Soft copper wire
Insulation: Special PVC
Jacket: TPU
Sheath color: Black
Filling: PVC strip
Wrap: Non-woven fabric
Spiral Cords | Coiled power cables |
Features
Wear resistance, Cold Resistance, Oil Resistance, Abrasion Resistance, Long service life
Technical Parameters
Cores/Core section: 6*0.3mm2
Spiral OD=22±2.0mm
L= 200±20mm, L1=200±10mm, L2=300±20mm
Max.Conductor DC Resistance at 20℃(Ω/KM): 65.0Ω/km
Test voltage AC: 1000V/1min
Tensile strength≧1.5kg/mm2(insulation), ≧2.0kg/mm2(sheath)
Elongation at break≧200%(insulation), ≧300%(sheath)
Product Manual
Product Name: Spiral cable
Rated Voltage: 300/300V
Rated Temperature:100℃
Reference standard and design basis: UL758-2008
Item | Specification Value | |
Conductor | Material | Soft copper wire |
Section | 0.3mm2 | |
Structure | 37/0.1mm | |
OD | 0.7mm | |
Insulatio n | Material | PVC |
Standard Thickness | 0.4mm | |
the thinnest Thickness | 0.26mm | |
OD | 1.5±0.1mm | |
Cable | Direction | Right |
filling | PVC Strip | |
Wrap | Non-woven fabric | |
OD | 4.5±0.1mm | |
Item | Specification Value | |
shield | Material | / |
Shielding method | / | |
Structure | / | |
Density | / | |
| Material | TPU |
Standard Thicknes | 0.8mm | |
the thinnest Thickness | 0.58mm | |
OD | 6.0±0.2mm | |
Spiral | (D) | 22±2.0mm |
(L) | 200±20mm | |
(L1) | 200±20mm | |
(L2) | 300±20mm | |
Item | Specification Value | ||||
Max.Conductor DC Resistance at 20℃(Ω/KM) | 65.0Ω/km | ||||
Test voltageAC | 1000V/1min | ||||
Test object | Insulation | Sheath | |||
Before aging | tensile strength | ≧1.5kg/mm2 | ≧2.0kg/mm2 | ||
Elongation at break | ≧200% | ≧300% | |||
Aging condition | 110±2℃X168h | ||||
After aging | tensile strength | ≧70%Original value | ≧65%Original value | ||
Elongation at break | ≧70%Original value | ≧65%Original value | |||
Combustion test | |||||
Sectional drawing
Core color: According to customers'requirement
Sheath color: Black
Printed content: no
Application
Suitable for CNC machine, Laser cutting machine.
