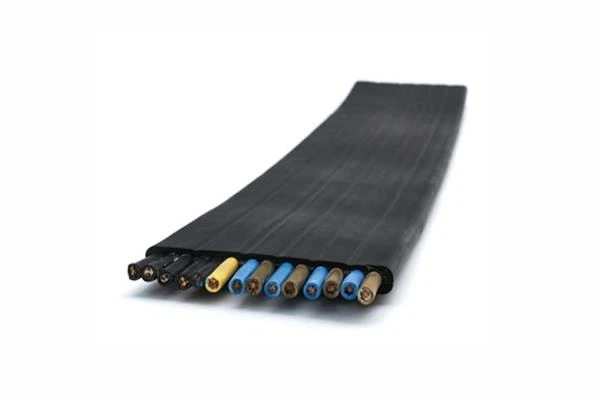

Lift Cable
The lift control cables are equipped with a suspension unit and serve the control of lift systems e.g. In industrial environment. Due to their long service life, an elevated economic efficiency is attained. Furthermore, those cables are flame retardant and self-extinguishing.
Material
Conductor: Comply with GB/T3956-1997 5kinds conductor specification requirement. Following DIN VDE 0295 and IEC 228 standard twisted copper wires.
Conductor insulation: PVC/D type
Outer jacket: PVC/ST5 cold-resistant special sheath, Black(RAL9005)or grey(RAL7001)
Lift Cable | Lift Cable Manufacturer | Lift Cable Suppliers |
Features
Long service life
Elevated economic efficiency
Flame retardant and self-extinguishing
Highest hanging lengths
The softness of cable is good,free hanging length no more than 35 meters, and moving speed no more than1.6m/s.Conductor maximum temperature is70C oc, normal working temperature is -15OC~40OC.
Technical Parameters
Rated voltage: U0/U 300/500V
Test voltage: Insulation thickness≤0.6: 1500V
finished product test: 2000V.
Operating temperature: -15℃to+70℃
Minimum bending radius:cable installtion allowed bending radius should no less than 6 times of cable width.
Static bending test: According to GB5023.2-2012 3.5
Flame resistance: Pass GB/T18380.1-2001 test and GB5023.6-2012
Part No. | Number of cores | Section mm2 | Width mm | Thickness mm | Weight kg/km | Core wire structure |
HXCRANE-YVFBP | 30 | 0.75 | 44.6±2.0 | 8.6±0.5 | 522 | flower arrangement(shielded) |
HXCRANE-YVFBP | 36 | 0.75 | 47.6±2.0 | 9.0±0.5 | 577 | flower arrangement(shielded) |
HXCRANE-YVFBP | 40 | 0.75 | 56.0±2.0 | 8.4±0.5 | 632 | flower arrangement(shielded) |
HXCRANE-YVFBP | 42 | 0.75 | 50.6±2.0 | 9.6±0.5 | 652 | flower arrangement(shielded) |
HXCRANE-YVFBP | 48 | 0.75 | 64.2±2.5 | 9.0±0.5 | 779 | flower arrangement(shielded) |
HXCRANE-YVFBP | 60 | 0.75 | 74.4±2.5 | 9.0±0.5 | 895 | flower arrangement(shielded) |
HXCRANE-YVFBP | 30 | 1.0 | 55.2±2.0 | 10.2±0.5 | 885 | flower arrangement(shielded) |
HXCRANE-YVFBP | 36 | 1.0 | 55.4±2.5 | 10.4±1.0 | 912 | flower arrangement(shielded) |
HXCRANE-YVFBP | 40 | 1.0 | 65.0±2.5 | 9.6±0.5 | 988 | flower arrangement(shielded) |
HXCRANE-YVFBP | 42 | 1.0 | 60.2±2.5 | 11.2±1.0 | 1067 | flower arrangement(shielded) |
HXCRANE-YVFBP | 48 | 1.0 | 71.4±2.5 | 10.4±1.0 | 1177 | flower arrangement(shielded) |
HXCRANE-YVFBP | 60 | 1.0 | 89.9±2.5 | 10.4±1.0 | 1482 | flower arrangement(shielded) |
HXCRANE-YVFBP | 30 | 1.5 | 59.0±2.0 | 11.0±0.5 | 1281 | flower arrangement(shielded) |
HXCRANE-YVFBP | 36 | 1.5 | 65.0±2.0 | 12.0±0.5 | 1540 | flower arrangement(shielded) |
HXCRANE-YVFBP | 40 | 1.5 | 76.2±2.0 | 11.0±0.5 | 1668 | flower arrangement(shielded) |
HXCRANE-YVFBP | 42 | 1.5 | 71.0±2.0 | 12.0±0.5 | 1710 | flower arrangement(shielded) |
HXCRANE-YVFBP | 48 | 1.5 | 84.2±2.0 | 12.0±0.5 | 2009 | flower arrangement(shielded) |
Application
Apply in Lift cable that ensures the electrical integrity in various areas of lift construction. Suitable for using in outdoor lifts.
