BC01 Female To Schuko AC 3 Pin H07rn-f 3G1.5 Betteri Rubber Cable
Product description:
Rubber cable electric cable H07RN-F 3 x 1.5 mm², mains connection cable Betteri BC01 to Schuko socket, for AC connection of the micro inverter to a Schuko socket.
Betteri BC01 to Schuko (CEE 7/7). Electric cable AC & Schuko VDE certificate.
Cable Diameter:10mm
Connection cable with connector Betteri BC01 (Female) for micro inverter APsystems, Hoymiles, Deye, Envertech, Huayu, Bosswerk or TSUN-TSOL.
Connections: Betteri BC01 (socket) / Schuko (IP44). Up to max. 3500 watts.
Mains connection cable, for AC connection of the module inverter to a Schuko socket.

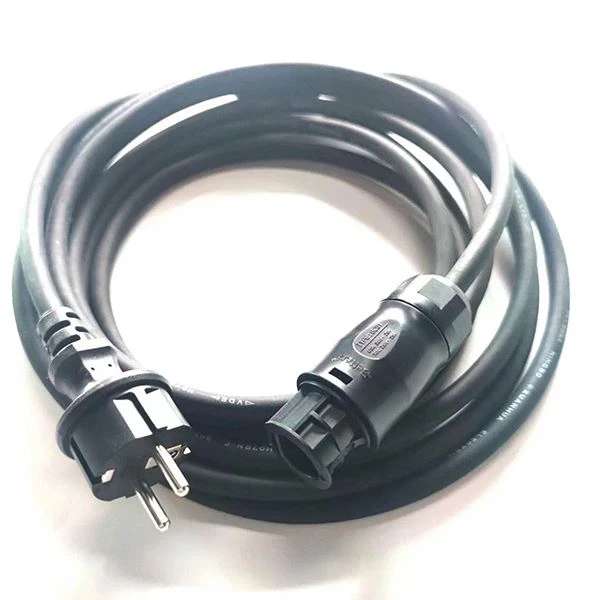

On one side with mounted Betteri BC01 (female) power connection socket, the other side with Schuko plug.
The H07RN-F 3 x 1.5 mm² rubber hose line is approved according to VDE 0282 for use under heavy use.
They are oil, UV and ozone resistant and are suitable for temperature ranges from -30°C to +60°C.
Product highlights:
Up to max. 3500 watts.
Betteri BC01 to Schuko (CEE 7/7)
3 x 1.5 mm² H07RN-F rubber hose cable (2 pin + PE).
Compatible with micro inverter APsystems, Hoymiles, Deye, Envertech, Huayu, Bosswerk or TSUN TSOL.
Specification
BC01 Female cable to Schuko Plug
Cable section: 3G1.5 or 3G2.5
Cable code: H07RN-F, Rubber wire
Cable Certificate: TUV approval
BC01 Plug: TUV and IP68
Schuko Plug: IP44
Customized length: 2m/3m/5m/10m/15m etc.
Schuko plug
Rated voltage: AC 250 V
Rated current: 16A
Number of poles: 2-pole with dual earthing contact system
Degree of protection: IP44
BC01 Female plug
Shell: The main body is made of imported PPO/PC, NYLON, SILICONE RUBBER
and other materials, with strong anti-aging and UV-resistance.
Metal terminal: copper alloy + silver plated surface
Installation Couplers for use on AC side of Photovoltaic Sys-tems
Parameters:
Rated Voltage: 250VAC
Rated Current: 20A(2.5mm2)25(4mm2)
Degree of Protection: IP68(1m, 1h)
Rated Impulse Voltage: 4kV
Poles configuration:1P+N+PE
Application
Suitable for single phase micro inverters with Betteri connector, compatible with AP systems, Hoymiles, Deye, Envertech, Huayu, Bosswerk or TSUN-TSOL.
