C20 To 2XC13 Power Cord
What’s C20 to dual C13 power cord?

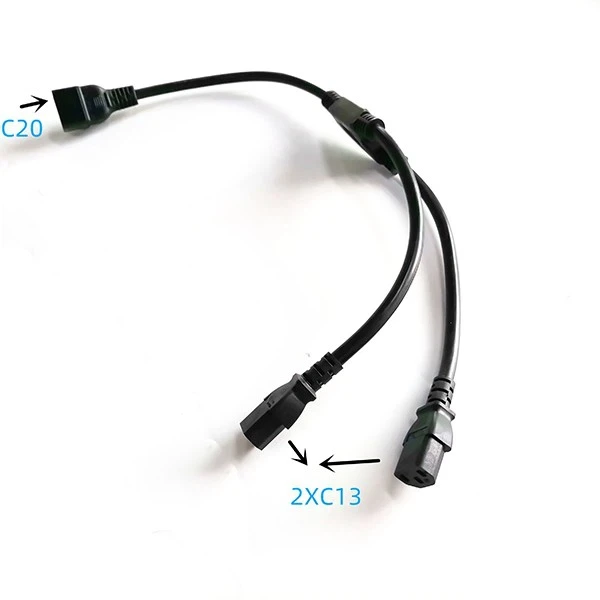

C20 male on one end and two C13 females on the other end. It is typically used on devices with multiple power supplies sharing one receptacle. These cables are connected to the injection molding plug and connector.
The connectors premium quality to ensure a snug fit into PDU receptacles. Each assembly is 100% continuity tested and 100% HVT (High Voltage) tested and inspected before shipping.
Application:
Server; Router; Network Switch; UPS; PDU
Connections：
Side A - Connector 1 IEC-320-C20
Side B - Connector 2，IEC-320-2XC13
Product Certifications
cUL Listed; UL Listed or ETL listed
Length: 3ft, 4ft, 5ft, 6ft,10ft,or customized length
Conductor size for main cable: 12awg, 14awg
Conductor size for splitter cable: 14awg or 16awg
Insulation: PVC
Jacket: PVC
Color: black
Voltage: 250V
oxygen-free copper
The IEC 320 C20 plug
The C20 inlet can be found on a variety of high powered IT equipment ranging from switches to Un-Interrupted power supply systems.
The C20 plug is commonly found on power cords used in the data center industry
The types of cordages used will change the rating of the overall cord set
The IEC 320 C13 plug
The IEC 60320 C13 is a grounded 3 wire connector rated up to 250V and 15amps
The C13 mates with a C14 inlet, and is commonly used in a jumper cables scenario in IT Installations providing power from a PDU to a server, router, switch or other computing device
The C13 splitter (x2) is for connecting 2 devices via 1 plug not to exceed 15A
Suggestion:
3X0.75MM2 conductor size cable, recommended for equipment with power less than 2000W
3x1.0mm2, conductor size cable, recommended for equipment with power less than 2500W
3x1.5mm2, conductor size cable, recommended for equipment with power less than 3500W
3x2.5mm2, conductor size cable, recommended for equipment with power less than 3500W
Shipping/ payment/packing
Shipping: by express/ by air/ by sea/by railway
Payment: Paypal/TT/western union/Alibaba
Packing: packing in carton
FOB: Shanghai,China
Delivery time: depend on your quantity( 14 to 20 working days)
