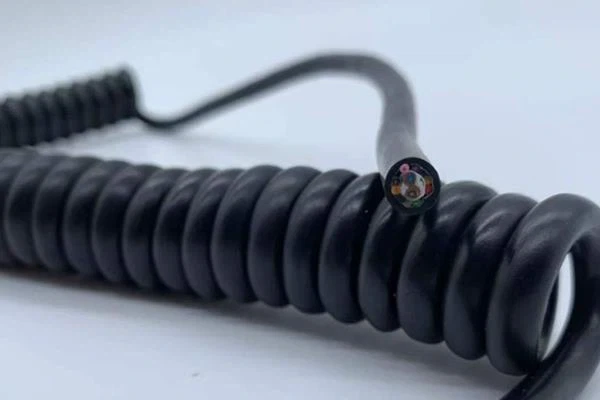

Coil Cords
High purity copper wire conductor, Wear resistant, Long service life, Widely used in Industrial Printer and Industrial Controllers
Material
Conductor: Soft copper wire
Insulation: PVC
Jacket: PVC
Sheath color: White
Wrap: Non-woven fabric
Filling: PVC strip
Coil Cords | Power Coil Cords | Coil Cords Suppliers |
Features
Durable, Flexible, High resilience, UV resistance, Weath and water resistant
Technical Parameters
Cores/Core section: 2x0.2mm2
Spiral Outer diameter: 23±2.0mm
Spiral Coil Length L= 250±10mm
Each end length= L1=L2=200±10mm
Direction: Right cabling
core wire color: Customizable
Max.Conductor DC Resistance at 20℃(Ω/KM): 97.5Ω/km
Test voltage: 1000V/1min
Tensile strength≧1.5kg/mm2(insulation), ≧2.0kg/mm2(sheath)
Elongation at break≧200%(insulation), ≧300%(sheath)
Application
Suitable for Industrial Printer and Industrial Controllers
Product Manual
Product Name: Spiral cable
Rated Voltage: 300/300V
Rated Temperature: 70℃
Reference standard and design basis: UL758-2008
Item | Specification Value | |
Conductor | Material | Soft copper wire |
Section | 0.2mm2 | |
Structure | 25/0.1mm | |
OD | 0.6mm | |
Insulation | Material | PVC |
Standard Thickness | 0.3mm | |
the thinnest Thickness | 0.18mm | |
OD | 1.2±0.1mm | |
Cable | Direction | Right |
filling | PVC strip | |
Wrap | Non-woven fabric | |
OD | 2.6±0.1mm | |
Item | Specification Value | |
shield | Material | / |
Shielding method | / | |
Structure | / | |
Density | / | |
| Material | PVC |
Standard Thicknes | 0.7mm | |
the thinnest Thickness | 0.50mm | |
OD | 4.0±0.1mm | |
Spiral | （D） | 23±2.0mm |
（L） | 250±10mm | |
（L1） | 200±10mm | |
（L2） | 200±10mm | |
Item | Specification Value | ||
Max.Conductor DC Resistance at 20℃(Ω/KM) | 97.5Ω/km | ||
Test voltageAC | 1000V/1min | ||
Test object | Insulation | Sheath | |
Before aging | tensile strength | ≧1.5kg/mm2 | ≧2.0kg/mm2 |
Elongation at break | ≧200% | ≧300% | |
Aging condition | 110±2℃X168h | ||
After aging | tensile strength | ≧70%Original value | ≧65%Original value |
Elongation at break | ≧70%Original value | ≧65%Original value | |
Combustion test | |||
Sectional Drawing | Spiral cable |
Core color: according to customer's requirement
Sheath color: white
Printed content: no
