Electrical Coil Cables
Approvals and standards: ROHS, CE
Approvals and standards: ROHS, CE
Product structure
Conductor: Fine strands copper wire, according to VDE0295 CLASS 5
Conductor insulation: High quality imported PE
Wire colour: Colourful
Wrapping tape: Special non-woven Wrap cushioning
Outer jacket material: High quality TPU
Outer jacket color: Blue or other color, color can choose
Electrical Coil Cables | Electrical Coil Cables Manufacturer | Electrical Coil Cables Suppliers |
Technical specification
Rated voltage: 0.75-1.0mm2 300/500V 1.5mm2 450/750V
Test voltage: 3000V
Insulation resistance: >20 Gohm x cm
Pperating temperature: Fixed installation: -35℃-+90℃
Movement: -20-+70℃
Flame resistance: Following IEC60332-1or2
Special characteristic
Special characteristic: Maximum stretch length is the 5 times of the coil length
High resilience (typical big coil)
Good oil resistance, abrasion resistance, cold resistance, weatherability
Approvals and standards: ROHS, CE
Application
Widely used in Mobile towline equipment, robotics, automation systems, machining equipment, packaging and logistics equipment, laser equipment, automobile manufacturing, winding lifting equipment, lifting systems, printing machinery, petrochemical, metallurgy, construction, railway, communications, transportation and city infrastructure construction and other fields.
Shanghai Fengy Cable Co., Ltd. is an advanced manufacturer integrating research and development, production, sales and service together. We are located in shanghai, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
We specialize in developing and manufacturing special cables. Widely used in Mobile towline equipment, robotics, automation systems, machining equipment, packaging and logistics equipment, laser equipment, automobile manufacturing, winding lifting equipment, lifting systems, printing machinery, petrochemical, metallurgy, construction, railway, communications, transportation and city infrastructure construction and other fields.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
Product description

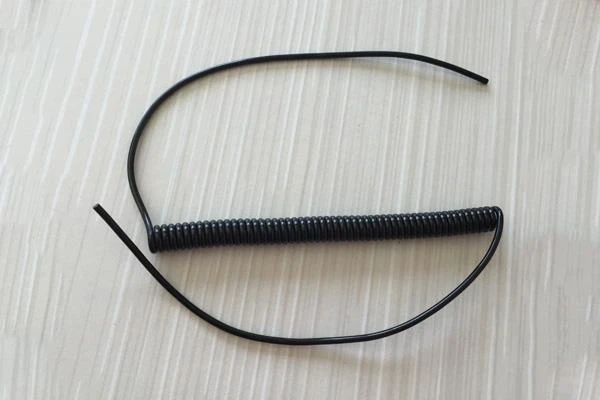

-Product name: spiral cable
-rated voltage: 300/300V
-rated temperature: 90℃
-standard: GB/T5023-2008
Product structure
| Item | Value | ||||
| conductor | material | soft copper | |||
| Section | 0.14 | ||||
| structure | 18/0.1mm | ||||
| Outer diameter | 0.5mm | ||||
| insulation | material | PE | |||
| The thinnest point of thickness | 0.25mm | ||||
| standard thickness | 0.20mm | ||||
| Outer diameter | 1.0±0.1mm | ||||
| cable without jacket | direction | parallel | |||
| filling | cotton thread | ||||
| wrap | non woven fabric | ||||
| Outer diameter | 2.7 | ||||
| Item | Value | ||||
| shield | material | / | |||
| wire shield | / | ||||
| instructure | / | ||||
| density | / | ||||
| sheath | material | TPU | |||
| The thinnest point of thickness | 0.7mm | ||||
| standard thickness | 0.50mm | ||||
| Outer diameter | 3.8±0.3mm | ||||
| Spiral | Outer diameter（D） | 14±2.0mm | |||
| spiral cable length（L） | 300±20mm | ||||
| beginning（L1） | 100±10mm | ||||
| end（L2） | 100±10mm | ||||
section | Spiral cable |
core wire colour: blue、brown、black、yellow/green
cable colour: black
Printing: according to customer request
Electrical Specification
| Item | Value | |||||||
| The largest dc resistance of conductor(20℃)≯ | 132Ω/km | |||||||
| test voltageAC | 1000V/1min | |||||||
| test item | insulation | sheath | ||||||
| before aging | tensile strength | ≧1.0kg/mm2 | ≧2.0kg/mm2 | |||||
| break elongation | ≧150% | ≧200% | ||||||
| aging condition | 110±2℃X168h | |||||||
| after aging | tensile strength change rate | ≧70% of original value | ≧65% of original value | |||||
| break elongation change rate | ≧70% of original value | ≧65% of original value | ||||||
| combustion test | VW-1,FT1 | |||||||
