Electrical Non Shielded Coil Cable
Conductor insulation: High quality PVC
Wire colour: Color code
Conductor insulation: High quality PVC
Wire colour: Color code
Product structure
Conductor: Fine strands copper wire, according to VDE0295 CLASS 5
Conductor insulation: High quality PVC
Wire colour: Color code
Wrapping tape: Special non-woven Wrap cushioning
Outer jacket material: High quality PU
Outer jacket color: Black or other color, color can choose
Technical specification
Rated voltage: 0.75-1.0mm2 300/500V 1.5mm2 450/750V
Test voltage: 3000V
Insulation resistance: >20 Gohm x cm
Pperating temperature: Fixed installation: -35℃-+90℃
Movement: -20-+70℃
Flame resistance: Following IEC60332-1or2
Product description

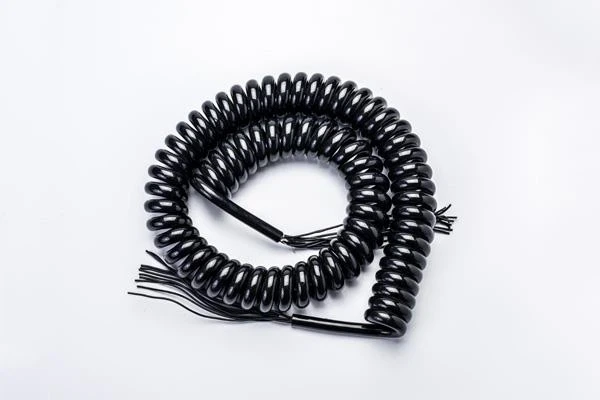

-Product name: spiral cable
-Rated voltage: 300/300V
-Rated temperature: 90℃
Standard: GB/T5023-2008
Product structure
Item | Value | |
Conductor | material | soft tinned copper |
Section | 1mm2 | |
structure | 55/0.15mm | |
Outer diameter | 1.3mm | |
Insulation | material | PVC |
The thinnest point of thickness | 0.5mm | |
standard thickness | 0.35mm | |
Outer diameter | 2.3±0.1mm | |
Cable without jacket | direction | right |
filling | PVC strip | |
wrap | non woven fabric | |
Outer diameter | 5.8 | |
Item | Value | |
Shield | material | / |
wire shield | / | |
instructure | / | |
density | / | |
Sheath | material | PU |
The thinnest point of thickness | 1.1mm | |
standard thickness | 0.84mm | |
Outer diameter | 8.0±0.5mm | |
Spiral | Outer diameter（D） | 28±2.0mm |
spiral cable length（L） | 1300±30mm | |
beginning（L1） | 150±10mm | |
end（L2） | 150±10mm | |
Section | Spiral Cable |
Core Wire Colour: brown, blue, white, black
Cable Colour: black
Printing: according to customer request
Electrical Specification
Item | Value | ||
The largest dc resistance of conductor(20℃)≯ | 19.5Ω/km | ||
Test voltageAC | 1500V/5min | ||
Test item | Insulation | Sheath | |
Before aging | tensile strength | ≧1.0kg/mm2 | ≧2.0kg/mm2 |
break elongation | ≧150% | ≧200% | |
Aging condition | 110±2℃X168h | ||
After aging | tensile strength change rate | ≧70% of original value | ≧65% of original value |
break elongation change rate | ≧70% of original value | ≧65% of original value | |
Combustion test | VW-1, FT1 | ||
