Electrical Shielded Coil Cable
Product structure
Conductor: Fine strands copper wire, according to VDE0295 CLASS 5
Conductor insulation: High quality TPEE
Wire colour: Colourful
Wrapping tape: Special non-woven Wrap cushioning
Outer jacket material: High quality waterproof PUR
Outer jacket color: Blue or other color, color can choose
Electrical Shielded Coil Cable | Electrical Shielded Coil Cable Suppliers |
Technical specification
Rated voltage: 0.75-1.0mm2 300/500V 1.5mm2 450/750V
Test voltage: 3000V
Insulation resistance: >20 Gohm x cm
Pperating temperature: Fixed installation: -35℃-+90℃
Movement: -20-+70℃
Flame resistance: Following IEC60332-1or2
Application
Widely used in Mobile towline equipment, robotics, automation systems, machining equipment, packaging and logistics equipment, laser equipment, automobile manufacturing, winding lifting equipment, lifting systems, printing machinery, petrochemical, metallurgy, construction, railway, communications, transportation and city infrastructure construction and other fields.
Fengy is a professional cables enterprise based in shanghai, and enjoying convenient transportation access. We are fully committed to producing technologically advanced Electrical shielded coil cable. We have partnered with leading operators and manufacturers in the industry. Our focus is on R&D, ensuring that we provide our customers with top quality and innovative products. In addition, we use stringent quality control measures to ensure the reliability of our products. With sound business credit, excellent after-sales service, and modern manufacturing facilities, we have earned an excellent reputation among our customers across the globe.
We emphasize development, and introduce new products into the market every year. Our products sell well in domestic and international markets, and are favorably appraised by clients. We pursue the management tenet of "Quality is superior, Service is supreme, Reputation is first", and will sincerely create and share success with all clients. To learn more about what we can do for you, contact us at any time. We look forward to establishing a good and long-term business relationship with you.
To benefit from our strong OEM/ODM capabilities and considerate services, contact us today. We will sincerely create and share success with all clients.
Product description

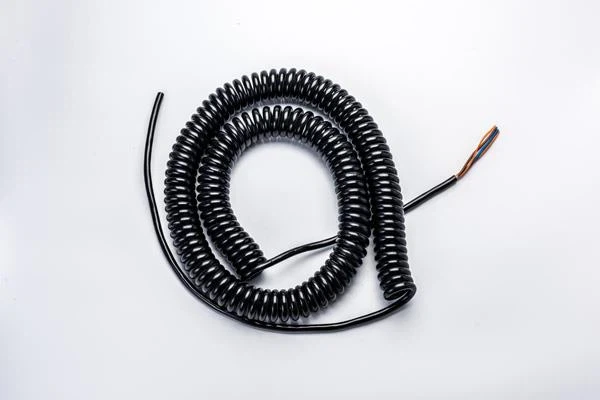

-Product name: spiral cable
-Rated voltage: 300/300V
-Rated temperature: 90℃
Standard: IEC 60228, EN50363-10-2, EN 50525-2-12：2011
Product structure
Item | Value | |
Conductor | material | soft copper |
Section | 0.14, 0.3 | |
structure | 85/0.14, 34/0.14 | |
Outer diameter | 1.5 0.9 | |
Insulation | material | TPEE |
The thinnest point of thickness | 0.35 0.25 | |
standard thickness | 0.4 0.3 | |
Outer diameter | 2.3 1.5 | |
Cable without jacket | direction | right |
filling | cotton thread | |
wrap | non woven fabric | |
Outer diameter | 7.1 | |
Item | Value | |
Shield | material | tinned copper |
wire shield | braid | |
instructure | 14*6/0.1 | |
density | 85% | |
Sheath | material | PUR |
The thinnest point of thickness | 1.2mm | |
standard thickness | 0.92mm | |
Outer diameter | 9.5±0.3mm | |
Spiral | Outer diameter（D） | 33±2.0mm |
spiral cable length（L） | 700±30mm | |
beginning（L1） | 300±20mm | |
end（L2） | 300±20mm | |
Section | Spiral Cable |
Core Wire Colour: white, green, brown, blue, black, grey
Cable Colour: black
Printing: according to customer request
Electrical Specification
Item | Value | ||
The largest dc resistance of conductor(20℃)≯ | 14.7, 39Ω/km | ||
Test voltageAC | 1000V/5min | ||
Test item | Insulation | Sheath | |
Before aging | tensile strength | ≧1.0kg/mm2 | ≧2.0kg/mm2 |
break elongation | ≧150% | ≧200% | |
Aging condition | 110±2℃X168h | ||
After aging | tensile strength change rate | ≧70% of original value | ≧65% of original value |
break elongation change rate | ≧70% of original value | ≧65% of original value | |
Combustion test | VW-1,FT1 | ||
