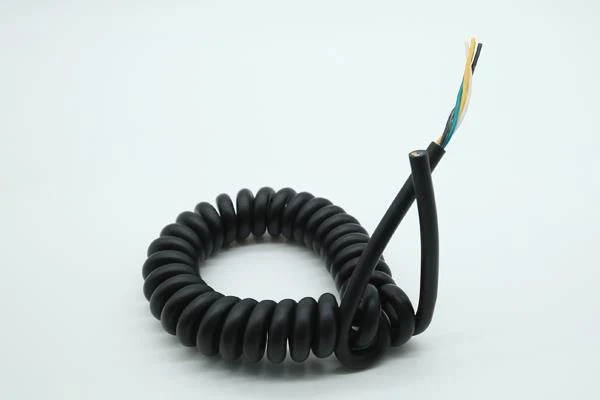

Electrical Spiral Cables
Product structure
Conductor: Fine strands copper wire, according to VDE0295 CLASS 5
Conductor insulation: High quality PE
Wire colour: Color code
Wrapping tape: Special non-woven Wrap cushioning
Outer jacket material: High quality TPU
Outer jacket color: Black or other color, color can choose
Electrical Spiral Cables | Spiral Power Cable |
Technical specification
Rated voltage: 0.75-1.0mm2 300/500V 1.5mm2 450/750V
Test voltage: 3000V
Insulation resistance: >20 Gohm x cm
Pperating temperature: Fixed installation:-35℃-+90℃
Movement: -20-+70℃
Flame resistance: Following IEC60332-1or2
Special characteristic
Special characteristic: Maximum stretch length is the 5 times of the coil length
High resilience (typical big coil)
Good oil resistance, abrasion resistance, cold resistance, weatherability
Approvals and standards: ROHS, CE
Application
Widely used in hostile environments, mechanical engineering, construction industry, medical equipment, and used in wet indoor and outdoor enviroment, used in these occasion which need small diameter cable. installation under continuous reciprocation, especially industrial frequent bending environments. Suitable for long stroke, heavy machinery equipment (hand), high pollution indoor environment which require shielding.
The company is located in the shanghai, a unique place with beautiful scenery and gifts of nature. On the basis of technology development, the company has taken in a group of experienced personnels who are talented in senior management, marketing and skills of producing. In the company, great attention is paid to basic management, stable quality ,continuously improving pre-sale services, sale and after-sale services, and enhancing the market competitiveness of our products.
We always provide customer the most appropriate cable options. You can enjoy high-quality products and services with most cost-effective, which is our relentless pursuit.
Main products of our company : Electrical spiral cables etc.
Since its foundation ,the company keeps living up to the belief of:"honest selling ,best quality, people-orientation and benefits to customers."
We are doing everything to offer our customers with best services and best products. We promise that we’ll be responsible all the way to the end once our services begin.
Product description
-Product name: spiral cable
-Rated voltage: 300/300V
-Rated temperature: 90℃
Standard: GB/T5023-2008
Product Structure
Item | Value | |
Conductor | material | soft copper |
Section | 20AWG | |
structure | 28/0.15mm | |
Outer diameter | 0.75mm | |
Insulation | material | PE |
The thinnest point of thickness | 0.3mm | |
standard thickness | 0.35mm | |
Outer diameter | 1.5±0.1mm | |
Cable group | direction | parallel |
filling | cotton thread | |
wrap | non woven fabric | |
Outer diameter | 3.6 | |
Item | Value | |
Shield | material | / |
wire shield | / | |
instructure | / | |
density | / | |
Sheath | material | TPU |
The thinnest point of thickness | 0.9mm | |
standard thickness | 1mm | |
Outer diameter | 5.6±0.1mm | |
Spiral | Outer diameter（D） | 18.5±0.5mm |
spiral cable length（L） | 150±10mm | |
beginning（L1） | 150±10mm | |
end（L2） | 150±10mm | |
Section | Spiral Cable |
Core Wire Colour: blue, black, brown, yellow/green
Cable Colour: black
Printing: according to customer request
Electrical Specification
Item | Value | ||
The largest dc resistance of conductor(20℃)≯ | 59Ω/km | ||
Test voltageAC | 1000V/1min | ||
Test item | Insulation | Sheath | |
Before aging | tensile strength | ≧1.0kg/mm2 | ≧2.0kg/mm2 |
break elongation | ≧200% | ≧300% | |
Aging condition | 110±2℃X168h | ||
After aging | tensile strength change rate | ≧70% of original value | ≧65% of original value |
break elongation change rate | ≧70% of original value | ≧65% of original value | |
Combustion test | VW-1, FT1 | ||
We are more than happy to manufacture top-of-the-line products for your project. Take a look around our website. If you have a query or you need advice, just contact us. We'll take time to help you.
