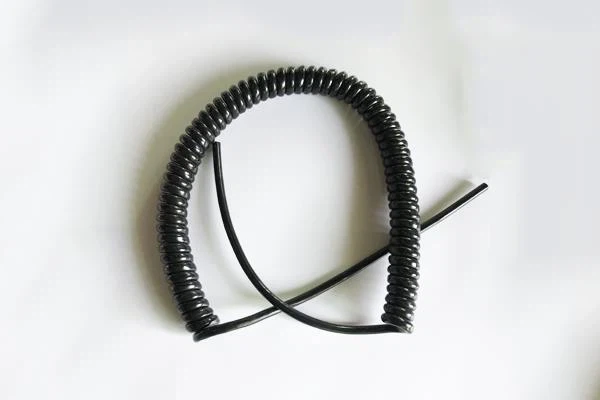

Retractable Cords
Conductor insulation: High quality imported TPE insulation
Wire colour: Colourful
Conductor insulation: High quality imported TPE insulation
Wire colour: Colourful
Product structure
Conductor: Fine strands copper wire, according to VDE0295 CLASS 5
Conductor insulation: High quality imported TPE insulation
Wire colour: Colourful
Wrapping tape: Special non-woven Wrap cushioning
Outer jacket material: High quality imported PU or TPE-E
Outer jacket color: Black
Retractable Cords | Retractable Cords Suppliers |
Technical specification
Rated voltage: 0.75-1.0mm2 300/500V, 1.5mm2 450/750V
Test voltage: 3000V Insulation resistance: >20 Gohm x cm
Pperating temperature: Fixed installation: -35℃-+90℃
Movement: -20-+70℃
Flame resistance: Following IEC60332-1or2
Special characteristic
Special characteristic: Maximum stretch length is the 5 times of the coil length
High resilience(typical big coil)Good oil resistance, abrasion resistance, cold resistance, weatherability
Approvals and standards: ROHS, CE
Application
Widely used in hostile environments,mechanical engineering, construction industry, construction industry, medical equipment, and used in wet inddor and outdoor enviroment, used in these occasion which need big diameter cable, ect.
Fengy is cables manufacturer and trader specialized in the research, development and production of Retractable cords. We are located in shanghai, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
We conduct strict quality inspections over each batch product. We will try our best to serve you and hope to become one of your friends and business partners.
Product description
-Product name: spiral cable
-Rated voltage: 300/300V
-Q27
Standard: GB/T5023-2008
Product structure
| Item | Value | |
Conductor | material | soft copper |
Section | 0.75 | |
structure | 48/0.14mm | |
Outer diameter | 1.1mm | |
Insulation | material | PVC |
The thinnest point of thickness | 0.5mm | |
standard thickness | 0.35mm | |
Outer diameter | 2.1±0.1mm | |
Cable without jacket | direction | left |
filling | cotton thread | |
wrap | non woven fabric | |
Outer diameter | 7.9±0.1mm | |
Item | Value | |
Shield | material | / |
wire shield | / | |
instructure | / | |
density | / | |
Sheath | material | PUR |
The thinnest point of thickness | 1.1mm | |
standard thickness | 0.84mm | |
Outer diameter | 6.5±0.5mm | |
Spiral | Outer diameter（D） | 25±2mm |
spiral cable length（L） | 340±20mm | |
beginning（L1） | 220±10mm | |
end（L2） | 1250±30mm | |
Section | Spiral cable |
Printing: according to customer request
Electrical Specification
Item | Value | ||
The largest dc resistance of conductor(20℃)≯ | 26.0Ω/km | ||
Test voltageAC | 2000V/5min | ||
Test item | Insulation | Sheath | |
Before aging | Tensile strength | ≧1.0kg/mm2 | ≧2.0kg/mm2 |
Break elongation | ≧150% | ≧200% | |
Aging condition | 110±2℃X168h | ||
After aging | Tensile strength change rate | ≧70% of original value | ≧65% of original value |
Break elongation change rate | ≧70% of original value | ≧65% of original value | |
Combustion test | VW-1, FT1 | ||
We are more than happy to manufacture top-of-the-line products for your project. Take a look around our website. If you have a query or you need advice, just contact us. We'll take time to help you.
