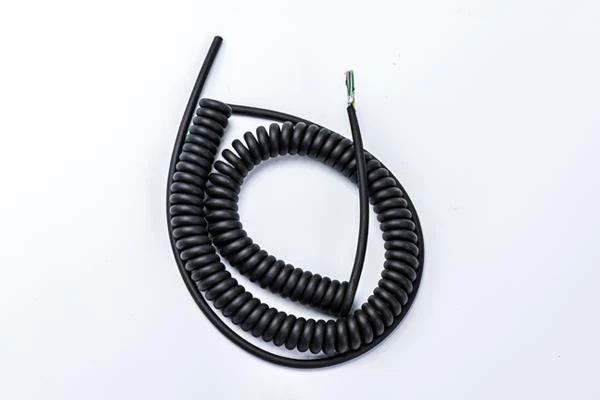

Retractile Cords
Outer jacket material: High quality TPU
Outer jacket color: Black or other color, color can choose
Outer jacket material: High quality TPU
Outer jacket color: Black or other color, color can choose
Product structure
Conductor: Fine strands copper wire, according to VDE0295 CLASS 5
Conductor insulation: High quality PVC
Wire colour: Color
Wrapping tape: Special non-woven Wrap cushioning
Outer jacket material: High quality TPU
Outer jacket color: Black or other color, color can choose
Retractile Cords | Retractile Cords Suppliers |
Technical specification
Rated voltage: 0.75-1.0mm2 300/500V 1.5mm2 450/750V
Test voltage: 3000V
Insulation resistance: >20 Gohm x cm
Pperating temperature: Fixed installation: -35℃-+90℃
Movement: -20-+70℃
Flame resistance: Following IEC60332-1or2
Application
Widely used in Mobile towline equipment, robotics, automation systems, machining equipment, packaging and logistics equipment, laser equipment, automobile manufacturing, winding lifting equipment, lifting systems, printing machinery, petrochemical, metallurgy, construction, railway, communications, transportation and city infrastructure construction and other fields.
Product description
-Product name: spiral cable
-Rated voltage: 300/300V
-Rated temperature: 70-90℃
Standard: UL758-2008
Product Structure
Item | Value | |
Conductor | material | copper strands |
Section | 1.31mm2 | |
structure | 85/0.14mm | |
Outer diameter | 1.5mm | |
Insulation | material | PVC |
The thinnest point of thickness | 0.7mm | |
standard thickness | 0.54mm | |
Outer diameter | 2.9±0.1mm | |
Cable group | direction | Right cabling |
filling | PVC strip | |
wrap | non-woven fabric | |
Outer diameter | 6.4±0.1mm | |
Item | Value | |
Shield | material | / |
wire shield | / | |
instructure | / | |
density | / | |
Sheath | material | TPU |
The thinnest point of thickness | 1.0mm | |
standard thickness | 0.76mm | |
Outer diameter | 8.4±0.5mm | |
Spiral | Outer diameter（D） | 35±2.0mm |
spiral cable length（L） | 300±20mm | |
beginning（L1） | 100±20mm | |
end（L2） | 100±20mm | |
Section | Spiral Cable |
Core Wire Colour: Red, white, black
Cable Colour: light black
Printing: according to customer request
Electrical Specification
Item | Value | ||
The largest dc resistance of conductor(20℃)≯ | 14.7Ω/km | ||
Test voltageAC | 1000V/1min | ||
Test item | Insulation | Sheath | |
Before aging | tensile strength | ≧1.0kg/mm2 | ≧2.0kg/mm2 |
break elongation | ≧200% | ≧300% | |
Aging condition | 110±2℃X168h | ||
After aging | tensile strength change rate | ≧70% of original value | ≧65% of original value |
break elongation change rate | ≧70% of original value | ≧65% of original value | |
Combustion test | VW-1, FT1 | ||
