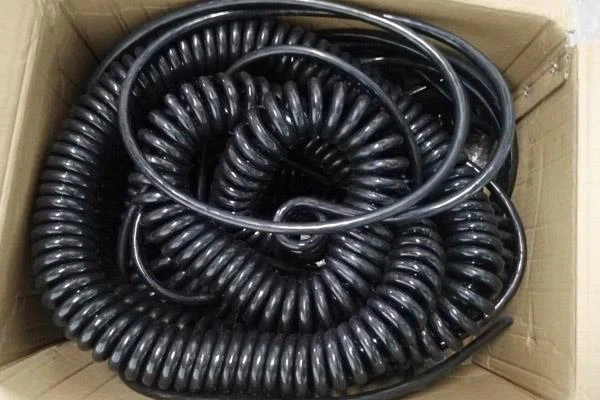

Spiral Power Cord
UV resistance, waterproof, good elasticity, widely used in Aerial work vehicle
Material
Conductor: Bare copper wire
Insulation: PVC
Jacket: TPU
Sheath color: Black
Filling: PVC strip
Wrap: Non-woven fabric
Core color: Customizable
Spiral Power Cord | Spiral Power Cord Manufacturer | Spiral Power Cord Suppliers |
Features
Durable, Weatherable, Waterproof, Cold resistance, High elasticity
Technical Parameters
Cores/Core section: 5X2.5mm2
Spiral OD: 68±2.0mm, L=stretched to 6m, L1=l2= 2000±20mm
Max.Conductor DC Resistance at 20℃(Ω/KM): 7.98Ω/km
Tensile strength≧1.5kg/mm2(insulation), ≧2.0kg/mm2(sheath)
Elongation at break≧200%(insulation), ≧380%(sheath)
Cable direction: Right cabling
Application
Suitable for outdoor use：Aerial work vehicle
Product Manual
Product Name：Spiral cable
Rated Voltage:300/500V
Rated Temperature:90℃
Reference standard and design basis: UL758-2008
Item | Specification Value | |
Conductor | Material | Bare copper wire |
Section | 2.5mm2 | |
Structure | 161/0.14mm | |
OD | 2.3mm | |
Insulation | Material | PVC |
Standard Thicknes | 0.8mm | |
The thinnest Thickness | 0.52mm | |
OD | 3.9±0.1mm | |
Cable | Direction | Right |
filling | PVC strip | |
Wrap | Non-woven fabric | |
OD | 10.6 | |
Item | Specification Value | |
Shield | Material | / |
Shielding method | / | |
Structure | / | |
Density | / | |
Sheath | Material | TPU |
Standard Thicknes | 1.4mm | |
The thinnest Thickness | 1.08mm | |
OD | 13.4±0.3mm | |
Spiral | （D） | 68±2.0mm |
（L） | Stretched to 6m | |
（L1） | 2000±20mm | |
（L2） | 2000±20mm | |
Item | Specification Value | ||
Max.Conductor DC Resistance at 20℃(Ω/KM) | 7.98Ω/km | ||
Test voltageAC | 1500V/5min | ||
Test object | Insulation | Sheath | |
Before aging | Tensile strength | ≧1.5kg/mm2 | ≧2.0kg/mm2 |
Elongation at break | ≧200% | ≧380% | |
Aging condition | 110±2℃X168h | ||
After aging | Tensile strength | ≧70%Original value | ≧65%Original value |
Elongation at break | ≧70%Original value | ≧65%Original value | |
Combustion test | |||
Core color: Brown, Blue, Black, White, Purple
Sheath color: Black
Printed content: no
