Fengy - 20+ years wire manufacturing experience,OEM/ODM cables and wiring harnesses.

LIYY 1
LIYY 2
LIYY 3
LIYY 4
LIYY 1
LIYY 2
LIYY 3
LIYY 4

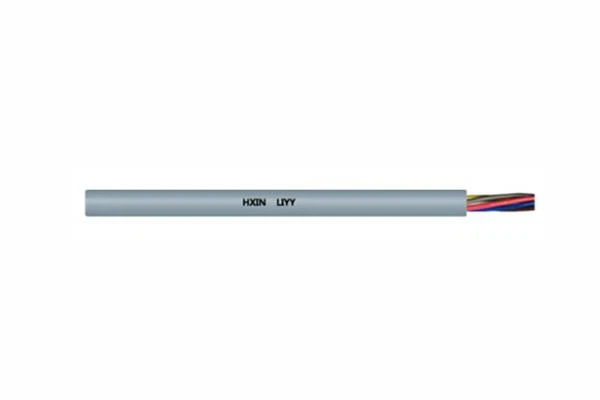

LIYY

Flexible used in dry or wet indoor
Small outer diameter
Small bending radius
Flexible used in dry or wet indoor
Small outer diameter
Small bending radius

    oops...!

    no product data.

    Go to homepage

    Material

    Conductor: Fine strands copper wire, according to DIN VDE 0812 standard

    Insulation: PVC,YI2 following DIN VDE 0207 part4

    Sheath: PVC,YM1 following DIN VDE 0207 part 5

    Core wire structure: Layered

    Sheath material: PVC,YM1 following DIN VDE 0207 part 5

    Sheath color: grey(RAL7032),can also customize other color


    Features

    Flexible used in dry or wet indoor

    Small outer diameter

    Small bending radius

    LIYY Cords

    LIYY Cords


    LIYY Power Cords

    LIYY Power Cords


    LIYY Cable

    LIYY Cable


    Technical Parameters

    The highest operating voltage: <0.25mm2: the highest voltage 350V

    ≥0.25mm2: The highest voltage 500V

    Test voltage: <0.25mm2: 800V

    ≥0.25mm2: 1200V

    Minimum bending radius: Fixed installation:6×D

    Movable installation: 10×D

    Operating temperature: Fixed installation: -30-+70℃

    Movable installation: -5-+70℃

    Flame retardant: Flame retardant and self-extinguishing comply with IEC60332-1-2

    Oil resistant: Anti light oil, gear oil, lubricating oil etc


    Parameter

    Part No.

    Cores or Section

    External Diameter

    mm

    Weight

    kg/km

    LIYY

    0.14×2C

    3.1

    13

    LIYY

    0.14×3C

    3.3

    15

    LIYY

    0.14×4C

    3.5

    17

    LIYY

    0.14×5C

    3.8

    21

    LIYY

    0.14×6C

    4.1

    25

    LIYY

    0.14×7C

    4.1

    25

    LIYY

    0.14×8C

    4.7

    33

    LIYY

    0.14×10C

    5.1

    34

    LIYY

    0.14×12C

    5.3

    39

    LIYY

    0.14×14C

    5.5

    44

    LIYY

    0.14×16C

    6.0

    53

    LIYY

    0.14×18C

    6.3

    59

    LIYY

    0.14×20C

    6.6

    65

    LIYY

    0.25×2C

    3.1

    16

    LIYY

    0.25×3C

    3.6

    20

    LIYY

    0.25×4C

    3.9

    24

    LIYY

    0.25×5C

    4.2

    29

    LIYY

    0.25×6C

    4.6

    34

    LIYY

    0.25×7C

    4.6

    35

    LIYY

    0.25×8C

    5.2

    45

    LIYY

    0.25×9C

    5.6

    51

    LIYY

    0.25×10C

    5.9

    51

    LIYY

    0.25×12C

    6.1

    58

    LIYY

    0.25×14C

    6.4

    66

    LIYY

    0.25×16C

    6.7

    74

    LIYY

    0.25×18C

    7.1

    83

    LIYY

    0.25×20C

    7.6

    95

    LIYY

    0.34×2C

    4.0

    23

    LIYY

    0.34×3C

    4.2

    27

    LIYY

    0.34×4C

    4.6

    33

    LIYY

    0.34×5C

    5.0

    41

    LIYY

    0.34×6C

    5.5

    49

    LIYY

    0.34×7C

    5.5

    51

    LIYY

    0.34×8C

    6.5

    67

    LIYY

    0.34×9C

    6.8

    69

    LIYY

    0.34×10C

    7.1

    72

    LIYY

    0.34×12C

    7.3

    83

    LIYY

    0.34×14C

    7.9

    98

    LIYY

    0.34×16C

    8.3

    111

    LIYY

    0.34×18C

    8.8

    124

    LIYY

    0.34×20C

    9.2

    137

    LIYY

    0.50×2C

    4.3

    27


    Application

    Can be used as control and signal cable in electronic equipment of the the computer system, electronic control equipment, office machinery, balance scale ect.


    A Company You Can Trust

    Located in shanghai, Fengy is a professional manufacturer of cable. We have tens years of experience in cable and have a good reputation in this field. Our products have won praise from customers worldwide.


    Quality and Safety

    We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products have attained CE, ROHS, VDE, UL approved.

    Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.


    contact us
    Feel free to contact us

    We are more than happy to manufacture top-of-the-line products for your project. Take a look around our website. If you have a query or you need advice, just contact us. We'll take time to help you.
