YSLY-SY

Temperature range: During installation: -5 °C up to +50 °C
Fixed installed: -30 °C up to +70 °C
Nominal voltage: Uo /U = 300/500 V
Temperature range: During installation: -5 °C up to +50 °C
Fixed installed: -30 °C up to +70 °C
Nominal voltage: Uo /U = 300/500 V

    oops...!

    no product data.

    Go to homepage

    Material

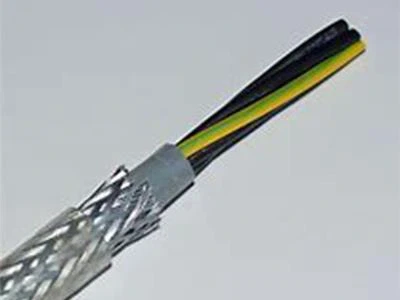

    Conductor: Bare copper conductor, fine wired stranded, class 5 acc. To IEC 60228 / HD 383 / DIN VDE 0295

    Insulation: PVC compound TI2 acc. To HD 21.1 / DIN VDE 0281 or YI2 acc. To VDE 0207.4, with green-yellow core, always in external layer (≥ 3 cores) or without green-yellow core.

    Inner sheath: PVC compound.

    Armour: Braid of galvanized steel wires, with min. 85% overlap.

    External sheath: PVC compound TM2 acc. To HD 21.1 / DIN VDE 0281 or YM2 acc. To VDE 0207.5.

    YSLY-SY Cords

    YSLY-SY Cords


    YSLY-SY Power Cords

    YSLY-SY Power Cords


    YSLY-SY Cable

    YSLY-SY Cable


    Technical Parameters

    Temperature range: During installation: -5 °C up to +50 °C

    Fixed installed: -30 °C up to +70 °C

    Nominal voltage: Uo /U = 300/500 V

    Test voltage: min. 4000 V

    Insulation resistance: min. 20 MΩ x km

    Min. inner bending radius:

    Fixed installed: 6D

    At application with bending: 20D


    Application

    Flexible signal cable for application in Ex-zones (with possible explosion danger), for equipment with independent supply source. Lightweight and relatively thin, resistant to medium mechanical loads, used for fixed or limitedly mobile installations (not permanently mobile) without strains. Laid in dry or damp premises, outdoor application only under protection against UV-irradiation. Not intended for laying in ground or water.
