Elevator Flexible Cable
Conductor insulation: HDPE,NBR, TPE, Cold resistant PVC
Conductor insulation: HDPE,NBR, TPE, Cold resistant PVC

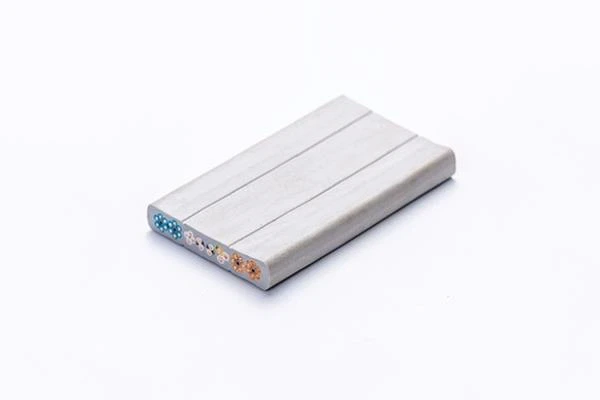

Elevator flexible traveling cable (either flat type or circular-liked type) is a cable that is used for power transmission to the elevator car, and communication between the controller, and the elevator car. The cable is usually if not always black, and hangs from the elevator car.
Material
Conductor: Finely strands oxygen-free copper wire, Following VDE029CLASS 5 standard
Conductor insulation: HDPE,NBR, TPE, Cold resistant PVC
Outer Jacket: Elevator special mixed PVC material or NBR (cold resistant application environment)
Elevator Flexible Cable | Elevator Flexible Cable Manufacturer | Elevator Flexible Cable Suppliers |
Features
Elevator data cable can hang along with the elevator control cable,which have steel wire rope. It can use independently while also can be used for long distance signal transmission.It has the good shielding effectiveness, applicable to the elevator and other accompanying mobile installations.
Technical Parameters
Rated voltage: U0/U 300/500V
Test voltage: Insulation thickness≤0.6:1500V
finished product test: 2000V.
Flame resistance: Pass GB/T18380.1-2001 test and GB5023.6-2012
Operating temperature: Fixed installation: -30℃ - +90℃
movable installation: -15℃- +90℃
Tensile strength: Test according to standard GB5023.2-2008 3.6
Minimum bending radius:fixed installation: 5* cable outer diameter
Movable installtion: Travel distance<10meter, bending radius is 8*d, travel distance≥10meter, bending radius is10*d.
Part Number | Cores×Section n×mm2 | The biggest diameter D=mm | Cable weight kg/km |
HXELEVATOR-BPG-TV | 36×0.75+2×2P×0.75+75-5 | 73.2±2×8.4±0.5 | 1127.5 |
HXELEVATOR-BPG-TV | 48×0.75+2×2P×0.75+75-5 | 86.8±2×8.4±0.5 | 1985.6 |
Application
Cable with special structural design, long working life and long service life. Suitable for the elevator internal traveling suspension.
