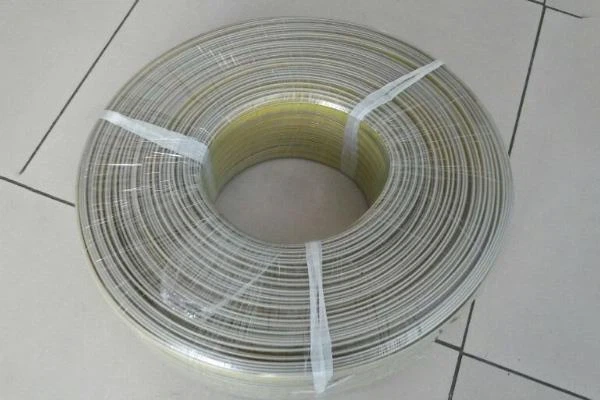

Steel Ruler Cable
Outer jacket: High quality imported PE sheathed or PU sheath
Outer jacket: High quality imported PE sheathed or PU sheath
Material
Conductor: Multi-strand fine oxygen-free copper wire following VDE0295 CLASS 5
Outer jacket: High quality imported PE sheathed or PU sheath
Jacket colors: Transparent
Features
Provide an accurate method of measuring water level. Usually used for measuring Wells, drilling and water pipe water, particularly suitable for hydropower engineering on the underground water level observation or manual inspection of dam body of rockfill dam saturation line.
Good physical and chemical properties, oil resistance, chemical corrosion resistance, abrasion resistance, resistance to hydrolysis and microbial resistance. Good low temperature performance, working temperature 40 ℃ to + 90 ℃.
Steel Ruler Cable | Steel Ruler Cable Suppliers |
Technical Parameters
Rated voltage: 300V/300V
Test voltage: 2000V
Insulation resistance: >200Mohm x Km
Fire resistance: Following IEC60332-1
Operating temperature: -40℃-+90℃
Application
This steel ruler cable is available for water level meter
We are more than happy to manufacture top-of-the-line products for your project. Take a look around our website. If you have a query or you need advice, just contact us. We'll take time to help you.
