Water Level Meters

water level meters provides an accurate measurement method of level meter, usually used for the measurement of water level in the drilling holes or water level pipe, particularly suitable for hydropower engineering underground water level or artificially inspection dam observation.

This instrument can be used in the construction period, but also can be used as the long-term safety monitoring project. Comply with the dam safety monitoring technology standard (SL60-94).

Our products include:

 Main parts:

Water level meter is composed of sensor, ruler cable, and cable reels.

Ruler cable It made by ruler and cable using plastic technology to keep them together. Making the read more convenient and accurate.

sensor It made by stainless steel, inside is a water resistance contact point. When the contact point contact water, the receiver system will open. When the contact point leaves the water, the receiver system will close.

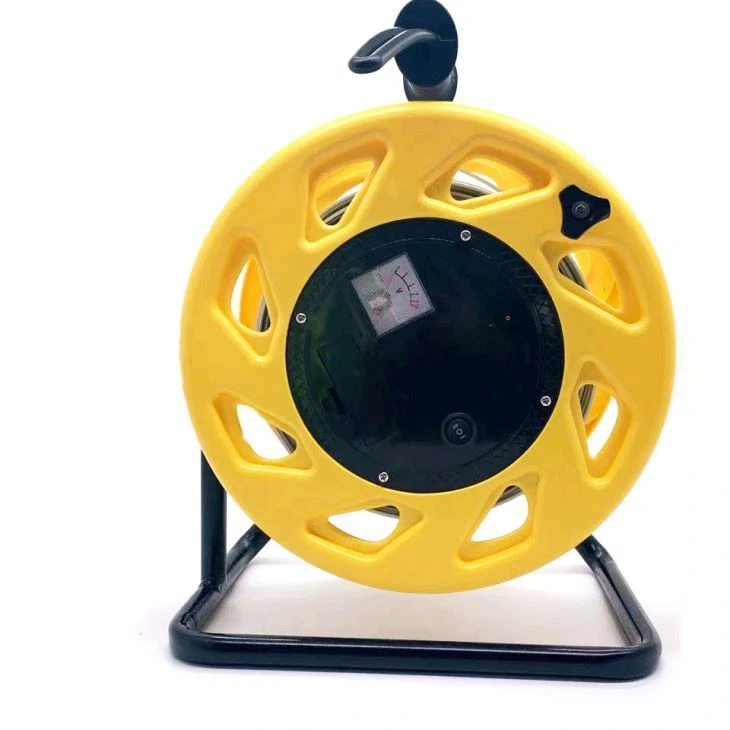

Reels With a stand-alone design, convenient carrying handle, and sturdy probe holder, the standard reels are ergonomically designed for ease of use. They are robust and smooth running. The battery is housed in a convenient drawer in the front of the reel, allowing quick replacement. The reels are equipped with an on/off sensitivity switch, light, buzzer, battery.

Product advantages

Water level meters are the industry standard for portable hand operated meters. They are sturdy, easy to carry and use and read more accurately.

Long Life: Rugged, corrosion-proof components, Strong, flexible tapes. Easy to splice and repair.

Application

They provide the convenience, durability and accuracy that groundwater professionals need to detect water levels in wells, boreholes dams standpipes.

Water Well Drilling/Borehole Drilling

Dam Observation

Standpipes

water level gauge for tank

Excavation

Embankment

Models: WLM1/WLM2/WLM3/WLM4/WLM5

Our service

 has more than 10 years experience in manufacturing and selling. The annual sales volume could reach 10000 units. Also we have customers all over the world. The main market loacted in South America, Europe, Asia, Mid East, Africa...

In a spirit of responsible for clients we try to meet the standards and the customers’ requirements in the process of designing and manufacturing process, as well as fully consider the basic cost. The products we providing will guarantee the quality and reasonable price, which ensure our cooperated customers can get the maximum value and minimum cost.

1.What's the price of the water level meter?

The price depended on the length and material.

lenth we have 30/50/100/150/200/250/300/350/400/450/500Meter.

And we totally have five models, 4 models the reel is ABS plastic,the frame is steel, just the color difference(Red/Yellow/Black/Blue).1 model,both the reel and frame are steel.

2.Can I get a free sample to see the quality of water level meter ?

Yes, the sample is available.

But sample is not free as the high value of water level meter.

You need to pay both the samples's fee and the shipping cost.

3.How long can I get the water level meter after I paid?

Usually the lead time is 3 days.

4.Which payment way that you support for the water level meter?

Our company support TT/WEST UNION/PAYPAL/AlLIBABA CREDIT GUARANTEE ORDER

5. MOQ

1pc

6.Co you ensure the water level meter work normally before the delivery?

Yes, we can ensure it work normally as we will test it before we send the water level meter.

7.What's the shipment way provided for the water level meter?

Depending on your need.The air/sea/railway all works for us.

8.Do you provide the operation manuel and the instrutions vedio for the water level meter?

Yes, operation manuel and instruction vedio is available for our customers.

9.How to maintain the water level meter?

The system use battery to supply power, so when you finished the test, you should keep it power off. Power supply is 9V, when it has no power, you should open the cover and change it.

After measurement, please keep the detect head and cable clean, cable rolled in cable reel. Putting them in a good condition. Unauthorized disassembly of this product is not allowed. It can not put in water horizontally, the cable can not bucking, especially the ends.

The detect head should been carry, put softly and avoid vibration.

10.Can I get the spare parts of water level meter ?

Yes, our factory support the spare parts like steel ruler cable,the frame and reel, steel ruler cable with probe.

11.How to replace the ruler tape on the water level meter?

If your steel ruler cable on the water level meter is broken after long runlife-time service.You can only buy the steel ruler cable from us then replce it via yourself.

12.What's the warranty you have for the water level meter?

One year warranty for non-human damage.

Beyond shelf life, customer bear the parts’ fee and the shipping cost.

13. After-sales Service

A reasonable solution and a response shall be provided within 24 hours of receipt of any inquiry.

Warranty terms and conditions shall be strictly observed.

Corresponding maintenance services shall be provided.

Factors affecting measurement accuracy

The operators must comply with operating procedure.

Operation method

In measuring, make the cable reel rotate and push the power button, put the detect head in the water pipe, put the ruler cable in hand and make it drop slowly. When the contact point of detect head contact water, the receiver system buzzer will sound. Then you can read the data on the ruler cable knowing the water level.(if the surrounding voice is loudly, maybe you can hear buzzer, so you can observe the indicate light and voltage meter).

Using tips

When the detect head contact water, buzzer will sound, indicator light on, This time you should put the cable slowly and look for the right place of the water level and the pipe or hole’s depth.

Maintenance

The system use 9v battery to supply power, so when you finished test, you should keep it power off. When the water level meters almost run out of battery , you should open the cover and replace it. After measurement, please keep the detect head and cable clean, cable rolled in cable reel. Putting them in a good condition. Unauthorized disassembly of the product, it can not been put in water horizontally, the cable can not bucking, especially the ends. The detect head should carry and put softly.

We are a sublimation manufacturers & suppliers in China.

If you are interested in any of our products.or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.

What is water level meter?

Water Level Meters provide the convenience, durability and accuracy that groundwater professionals need to detect water levels in wells, boreholes and standpipes.

Water level meter provide an accurate measurement method of level meter, usually used for the measurement of water level in the drilling holes or water level pipe ,particularly suitable for hydropower engineering underground water level or artificially inspection dam observation.

How does a water level meter work?

The probes incorporate an insulating gap between electrodes.

When contact is made with water, the circuit is completed,

activating a loud buzzer and a light. The water level is then

determined by taking a reading directly from the tape at the topof the well casing or borehole.

The Water Level Meters are powered by one 9V battery. The light and buzzer are activated when the probe reaches water, completing an electrical circuit.

How to use water level meter?

step1.Install the 9v battery

step2.Turn the switch to 1,the red pointer goes to the right which means the current is normal

step3.Put the sensor probe into the water

step4.Turn the switch to 2, then you will see the light on and there'll be a sound to remind you

(If you need we can share the operation video for you)

What are the advantages of water level meter?

Water Level Meters are the industry standard for portable hand operated meters. They are sturdy,easy to carry and use, and read accurately.

Long Life: Rugged, corrosion proof components, Strong, flexible tapes. Easy to splice and repair

Matters need to be pay attention to when use the water level meter?

1. when the detect head contact water, buzzer will sound, indicator light on, at this time you should put the cable slowly and look for the right place of the water level, the pipe or hole’s depth.

2. The accuracy of the indication depends on judging the correct position of the buzzer and indicator lights. Therefore, practical operation is very necessary.
