Steel Reel Water Level Meter
Buzzer: When probe contact water, buzzing
Led light: When probe contact water, ligh ton
Power: 9V battery
Buzzer: When probe contact water, buzzing
Led light: When probe contact water, ligh ton
Power: 9V battery
Material
Reel: Steel
Frame: Steel
Cable inside: Carbon steel
Outer jacket: PE/PU
Sensor: Stainless steel
Technical Parameters
Probe: The diameter of probe is 14mm, when it detect water, the led light on and buzzer buzzing
Buzzer: When probe contact water, buzzing
Led light: When probe contact water, light ton
Power: 9V battery
Steel Reel Water Level Meter | Water Level Meter |
Description
Water Level Meters use corrosion proof stainless steel probes attached to permanently marked flat tape, fitted on a well-balanced reel. They are powered by a standard 9 volt battery. The probes incorporate an insulating gap between electrodes.

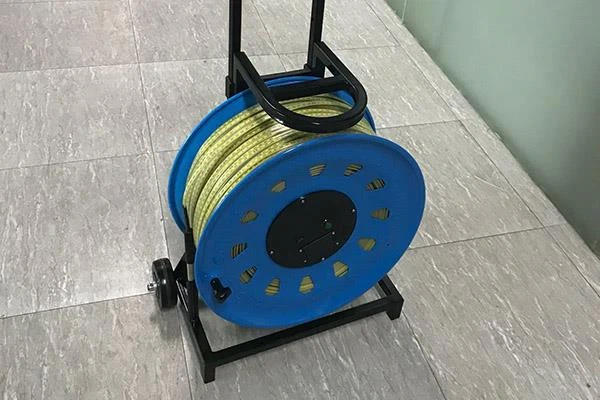

Reels With a stand-alone design, convenient carrying handle, and sturdy probe holder, the standard reels are ergonomically designed for ease of use. They are robust and smooth running. The battery is housed in a convenient drawer in the front of the reel, allowing quick replacement. The reels are equipped with an on/off sensitivity switch, light, buzzer, battery test button, brake and a tape guide stored on the frame.
Main specification
Specification | WLM-30 | WLM- 50 | WL M-100 | WLM- 150 | WKM- 200 | WLM- 300 | WLM- 400 | WLM- 500 |
Depth of the measurement （m） | 0~30 | 0~50 | 0~100 | 0-150 | 0-200 | 0-300 | 0-400 | 0-50 |
Minimum indication （mm） | 1.0 | |||||||
Repeat indication （mm） | ±2.0 | |||||||
weight （Kg） | 4.5 | 5.5 | 6.5 | 7.5 | 8.5 | 10 | 12 | 15 |
Power supply （V） | DC=9 | |||||||
Application
For measuring the depth to water in wells, boreholes, standpipes, tanks, water conservancy reconnaissance, DAMS, water lines detection.
