Profibus Cable
Introduction:
Get application flexibility in a variety of tough applications, including outdoors and where multiple cable runs are required.

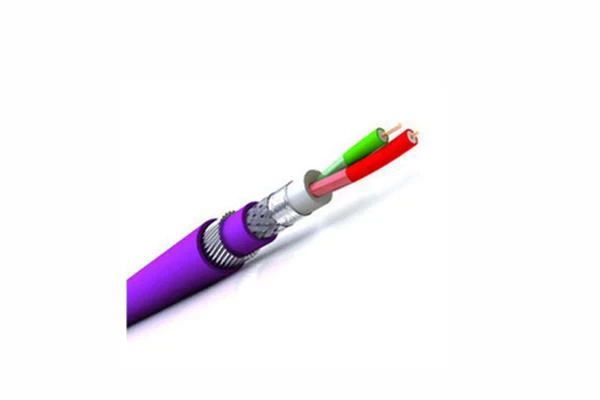

Material:
Conductor: Solid copper wire
Conductor insulation: PE
Screen 1: Aluminium / Polyester tape (Al/PET)
Screen 2: Tinned copper wire braid (TCWB)
Sheath: PVC or Low Smoke Zero Halogen (LSZH)
PROFIBUS Cable | PROFIBUS Industrial Cable |
Features:
1. PROFIBUS is a powerful, open, and rugged bus system that ensures seamless communication.
2. The system is fully standardized, thus enabling trouble-free connection of standardized components from a variety of manufacturers.
3. Configuration, commissioning, and troubleshooting can be carried out from any location.
4. This results in user-defined communication relationships that are very versatile, simple to implement, and easy to change.
5. Fast assembly and commissioning on site with the help of the fast connect wiring system.
6. High security of investment since existing networks can be extended without any adverse effects.
Technical Parameters
Voltage Rating :300V (not for power purposes)
Temperature Rating Fixed: -30°C to +80°C
Minimum Bending Radius Fixed: 15 x overall diameter
Application:
Profibus cables are automation cabling for industrial fieldbus fast-connect-type systems, particularly developed for process applications. They offer excellent electrical transmission performance for their respective decentralized Peripherals (DP) and Process Automation (PA) applications.
We are more than happy to manufacture top-of-the-line products for your project. Take a look around our website. If you have a query or you need advice, just contact us. We'll take time to help you.
