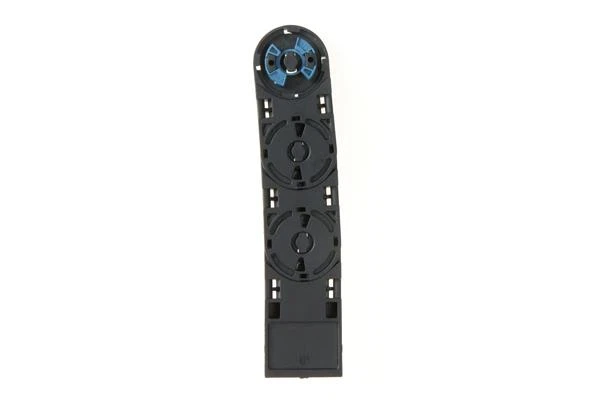

Totally Closed Outer Open Drag Chain Carrier For Cables
Sometimes referred to as energy chains or cable carriers, drag chains are simple guides that are used to encompass different types of hoses and cables. A drag chain helps to minimize the wear and tear on the hose or cable it protects, while also helping to ease the degree of tangle that can sometimes occur with extended lengths of hose. As such, the chain can also be seen as a safety device.
Application
The drag chain can be used to protect hoses and cables in a variety of different settings. Drag conveyor chains are often used in automated car washes, as well as in production facilities like an oil rig. Cranes, forklifts, and other types of tools used in construction also make use of hoses and cables protected with drag chains.
Micro D.T WFZ.G15 series-bridge open
Movement direction
Overhead length curve
1. Internal height
Suitable for cable ＜∮13mm
2. Installation length
Vertical up=Max1.1m
Vertical down＝Max0.5m
Lateral running＝Max5.5m
3. Parameter drag chain
- Chain length[L=S/2+K]Installation length of chain, S=travel distance, K=bending length
- Patch=28
- Link Per meter=36
Model | Inner height | Inner width | External height | External width | Bending radius |
D.T WFZ.G15..K15 | 15 | 15 | 22 | 25 | 28 38 48 |
D.T WFZ.G15.K20 | 20 | 30 | |||
D.T WFZ.G15.K30 | 30 | 40 | |||
D.T WFZ.G15.K40 | 40 | 50 | |||
D.T WFZ.G15.K50 | 50 | 60 |
R | 28 | 38 | 48 |
H | 78 | 98 | 118 |
D | 63 | 73 | 83 |
K | 150 | 175 | 225 |
4. Parameter of joint
Model | Specification | A | B | C | D | E |
D.T15.15.JLY.JLG | 15*15 | 11 8 | 8 | 38 | 4*7L | 21 |
D.T15.20.JLY.JLG | 15*20 | |||||
D.T15.30.JLY.JLG | 15*30 | |||||
D.T15.40.JLY.JLG | 15*40 | |||||
D.T15.50.JLY.JLG | 15*50 |
5.15 series joint
1. D.T15.15.JLY.JLG
2. D.T15.20.JLY.JLG
3. D.T15.30.JLY.JLG
4. D.T15.40.JLY.JLG
5. D.T15.50.JLY.JLG
We are more than happy to manufacture top-of-the-line products for your project. Take a look around our website. If you have a query or you need advice, just contact us. We'll take time to help you.
