Plastic CNC Cabledrag Chain Wire Carrier
Today drag chains are available in many different styles, sizes, prices and performance ranges. Some of the following variants are open, closed (protection from dirt and debris, such as woodchips or metal shavings), Steel or Stainless steel, low noise, cleanroom compliant (minimal wear), multi-axis movement, high load resistant chemical, water and temperature resistant.
Application
Used for machine tools, cranes, car washes, medical and laboratory equipment, automatic warehousing, forklifts, industrial robots, offshore oil rigs and stage technology.
High load D.T WFZ.G25.FQ series-totally enclosed outer opening
Movement Direction
Overhead Length Curve
1. Internal Height
Suitable for cable ＜∮22mm
2. Installation Length
Vertical up=Max2.2m
Vertical down＝Max45m
Lateral running＝Max1m
3. Parameter Drag Chain
- Chain length[L=S/2+K]Installation length of chain, S=travel distance, K=bending length
- Patch=44
- Link Per meter=23
Model | Inner height | Inner width | External height | External width | Bending radius |
D.T GFZ.G25.K37-FQ | 25 | 37 | 37 | 58 | 75 100 125 150 200 |
D.T GFZ.G25.K57-FQ | 57 | 78 | |||
D.T GFZ.G25.K77-FQ | 77 | 98 |
R | 55 | 75 | 100 | 125 | 150 |
H | 147 | 187 | 237 | 287 | 337 |
D | 116 | 141 | 166 | 191 | 216 |
K | 230 | 322 | 414 | 506 | 598 |
4. Parameter of Joint
Model | Specification | A | B | C | D | E | F |
D.T.G25.JLG.JLY | 25*37 | 11 | 52 | 11 | 5.5 | 58 | 16 |
25*57 | 72 | 78 | |||||
25*77 | 92 | 98 |

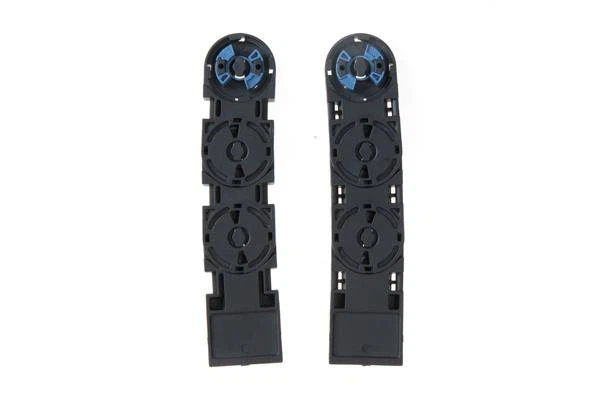

5. 25 series Joint
