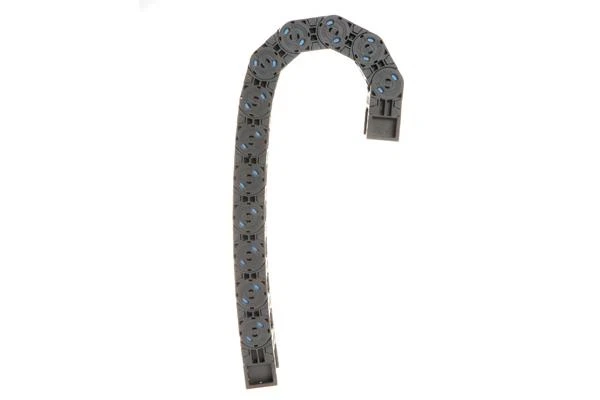

Totally Closed Outer Open Plastic Drag Chain For Cables
Configurations of different types made it possible for the drag chain to be incorporated into all types of pneumatic and hydraulic hose designs, a feature that proved to help increase the efficiency of hoses that were used in different types of automated machinery, especially in manufacturing facilities. Over the years, the steel drag chain has been eclipsed by chains constructed with the use of polypropylene or other flexible plastics that are capable of providing protection to the hose without inhibiting flexibility.
Application
Widely used in CNC machine tools electronic equipment stone machinery glass machinery doors and Windows mechanical injection molding machine manipulator lifting transportation equipment automation warehouse.
High load D.T GFZ.G35.FQ series-totally closed outer open
Movement direction
Overhead length curve
1. Internal height
Suitable for cable ＜∮31mm
2. Installation length
Vertical up=Max2.5m
Vertical down＝Max47m
Lateral running＝Max1m
3. Parameter drag chain
- Chain length[L=S/2+K]Installation length of chain, S=travel distance, K=bending length
- Patch=56
- Link Per meter=18
Model | Inner height | Inner width | External height | External width | Bending radius |
D.T GFZ.G35.K50-FQ | 35 | 50 | 47 | 71 | 100 125 150 175 200 |
D.T GFZ.G35.K75-FQ | 75 | 96 | |||
D.T GFZ.G35.K100-FQ | 100 | 121 | |||
D.T GFZ.G35.K125-FQ | 125 | 146 | |||
D.T GFZ.G35.K150-FQ | 150 | 171 |
R | 75 | 100 | 125 | 150 | 200 |
H | 197 | 247 | 297 | 347 | 447 |
D | 162 | 187 | 212 | 237 | 287 |
K | 365 | 473 | 532 | 591 | 768 |
4. Parameter of joint
Model | Specification | A | B | C | D | E | F |
D.T.G35.JLG.JLY | 35*50 | 22 | 65 | 13 | 6 | 71 | 22 |
35*75 | 90 | 96 | |||||
35*100 | 115 | 121 | |||||
35*125 | 140 | 146 | |||||
35*150 | 165 | 171 |
5. 35 series joint
