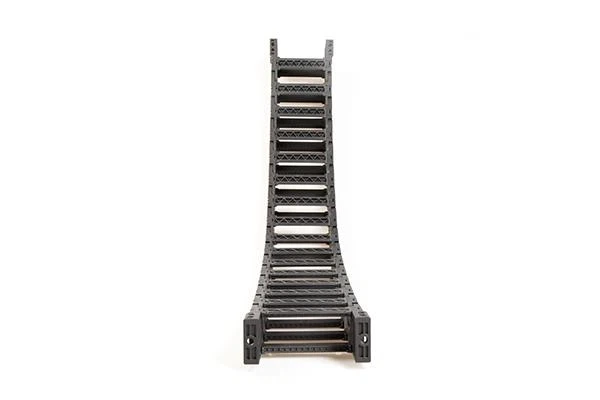

Totally Enclosed Outer Opening Flexible Cable Drag Chain
Drag chains, also known as cable carrier, energy chains, or cable chains depending on the manufacturer, are guides designed to surround and guide flexible electrical cables and hydraulic or pneumatic hoses connected to moving automated machinery. They reduce wear and stress on cables and hoses, prevent entanglement, and improve operator safety.
Apllication
Widely used in CNC machine tools, electronic equipment, glass machinery, injection molding machine robots, handling machinery, plastic machinery, lifting equipment, woodworking machinery, automotive industry, industrial vehicles, metal processing machines, machine tools, casting machinery, port equipment And other industries.
High load D.T GFZ.G45.FQ series- totally enclosed outer opening
Movement direction
Overhead length curve
1. Internal height
Suitable for cable ＜∮40mm
2. Installation length
Vertical up=Max7m
Vertical down＝Max120m
Lateral running＝Max3m
3. Parameter drag chain
- Chain length[L=S/2+K]Installation length of chain, S=travel distance, K=bending length
- Patch=75
- Link Per meter=14
Model | Inner height | Inner width | External height | External width | Bending radius |
D.T GFZ.G45.K50-FQ | 45 | 50 | 65 | 77 | 125 150 175 200 250 |
D.T GFZ.G45.K75-FQ | 75 | 102 | |||
D.T GFZ.G45.K100-FQ | 100 | 127 | |||
D.T GFZ.G45.K125-FQ | 125 | 152 | |||
D.T GFZ.G45.K150-FQ | 150 | 177 | |||
D.T GFZ.G45.K170-FQ | 175 | 202 | |||
D.T GFZ.G45.K200-FQ | 200 | 227 |
R | 125 | 150 | 200 | 250 |
H | 315 | 365 | 456 | 565 |
D | 229 | 254 | 304 | 347 |
K | 572 | 643 | 786 | 1008 |
4. Parameter of joint
Model | Specification | A | B | C | D | E | F |
D.T.G45.JLG.JLY | 45*50 | 30 | 66 | 14 | 6.3 | 77 | 30 |
45*75 | 91 | 102 | |||||
45*100 | 116 | 127 | |||||
45*125 | 141 | 152 | |||||
45*150 | 166 | 177 | |||||
45*175 | 191 | 202 | |||||
45*200 | 216 | 227 |
5. 45 series joint
