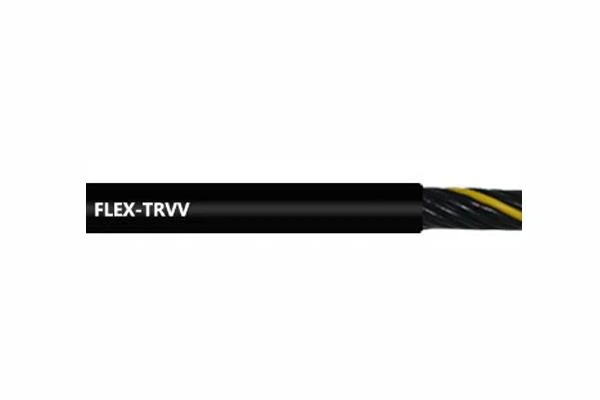

PVC Drag Chain Cable
Introduction
PVC drag chain cables are particularly for flexible use, e.g. Control or data cables in drag chains installed on machine tools and robot devices, wherever energy supply and signals are transmitted to machines and appliances that are in permanent movement.
Material
Conductor: fine strands of oxygen-free copper wire, according to VDE0295 CLASS 6 standard
Conductor insulation: high quality mixed PVC
Outer jacket material: special nitrile mixed PVC
PVC Drag Chain Cable | PVC Drag Chain Cable Suppliers |
Features
Waterproof, oil resistance, uv resistance, weatherability, cold resistance,abrasive resistance, can afford some mechanical force
Technical Parameters
Moving characteristic: Installtion travel distance > 50m, acceleration 20m/S2, moving speed 5m/S
Rated voltage: ＜0.5mm2: 300/300V ≥0.5mm2: 300/500V
Test voltage: 2000V
Minimum bending radius:Fixed installation: 6×D
Movable installation: Distance of travel <10m, minimum bending radius 6×D, distance of travel ≥10m, minimum bending radius 10×D
Operating temperature
Fixed installation: -30℃-+70℃
Movable installation: -20℃-+70℃
Flame resistance: Following IEC60332-1-2+EN60332-1-2
Parameters
Model | Spec | Single strand diameter | Density | OD |
FLEX-TRVV | 0.1*2C | 0.1 | 23 | 4.6 |
FLEX-TRVV | 0.1*3C | 0.1 | 27 | 4.8 |
FLEX-TRVV | 0.1*4C | 0.1 | 32 | 5.1 |
FLEX-TRVV | 0.1*5C | 0.1 | 37 | 5.4 |
FLEX-TRVV | 0.1*6C | 0.1 | 42 | 5.8 |
FLEX-TRVV | 0.1*7C | 0.1 | 46 | 6.2 |
FLEX-TRVV | 0.1*8C | 0.1 | 51 | 6.5 |
FLEX-TRVV | 0.1*9C | 0.1 | 56 | 6.9 |
FLEX-TRVV | 0.1*10C | 0.1 | 64 | 7.4 |
FLEX-TRVV | 0.1*11C | 0.1 | 72 | 8.4 |
FLEX-TRVV | 0.1*12C | 0.1 | 76 | 8.4 |
FLEX-TRVV | 0.1*13C | 0.1 | 80 | 8.6 |
FLEX-TRVV | 0.1*14C | 0.1 | 86 | 9.2 |
FLEX-TRVV | 0.1*15C | 0.1 | 89 | 9.2 |
FLEX-TRVV | 0.1*16C | 0.1 | 92 | 9.2 |
FLEX-TRVV | 0.1*17C | 0.1 | 96 | 9.4 |
FLEX-TRVV | 0.1*18C | 0.1 | 102 | 9.8 |
FLEX-TRVV | 0.1*19C | 0.1 | 107 | 10.2 |
FLEX-TRVV | 0.1*20C | 0.1 | 109 | 9.9 |
FLEX-TRVV | 0.14*2C | 0.1 | 24 | 4.6 |
FLEX-TRVV | 0.14*3C | 0.1 | 28 | 4.8 |
FLEX-TRVV | 0.14*4C | 0.1 | 33 | 5.1 |
FLEX-TRVV | 0.14*5C | 0.1 | 38 | 5.4 |
FLEX-TRVV | 0.14*6C | 0.1 | 43 | 5.8 |
FLEX-TRVV | 0.14*7C | 0.1 | 49 | 6.2 |
FLEX-TRVV | 0.14*8C | 0.1 | 54 | 6.5 |
FLEX-TRVV | 0.14*9C | 0.1 | 59 | 6.9 |
FLEX-TRVV | 0.14*10C | 0.1 | 67 | 7.4 |
FLEX-TRVV | 0.14*11C | 0.1 | 76 | 8.4 |
FLEX-TRVV | 0.14*12C | 0.1 | 79 | 8.4 |
FLEX-TRVV | 0.14*13C | 0.1 | 84 | 8.6 |
FLEX-TRVV | 0.14*14C | 0.1 | 90 | 9.2 |
FLEX-TRVV | 0.14*15C | 0.1 | 94 | 9.2 |
FLEX-TRVV | 0.14*16C | 0.1 | 97 | 9.2 |
FLEX-TRVV | 0.14*17C | 0.1 | 101 | 9.4 |
FLEX-TRVV | 0.14*18C | 0.1 | 107 | 9.8 |
Application
Installation under continuous reciprocation, especially industrial frequent bending environments. such as drag chains of modern machinery and logistics systems, control systems, automatic machinery systems, ect. CNC machines, electronic equipments, hardware rammings, wood and stone machinery, glass and windows machinery, injection molding machiney, robots and manipulators, construction machinery, heavy-duty machinery, automobile manufacturing, lifting transport equipments, automated warehouses, docks, fire engines and other indoor and outdoor environments.
