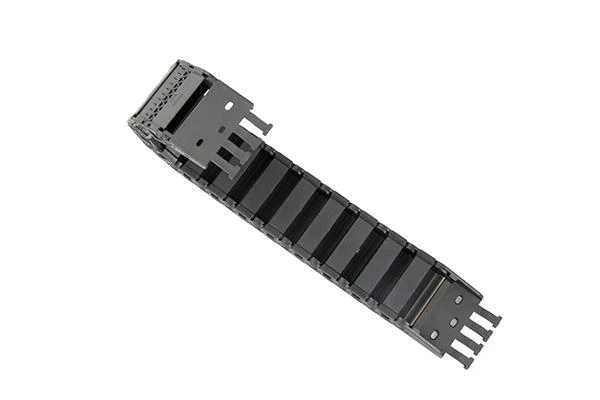

Bridge Type Non-opening Cable Drag Chains
Drag chain are often used with special highly flexible cables to extend the cables' service life.They reduce wear and stress on cables and hoses, prevent entanglement, and improve operator safety. Drag chain may be arranged to accommodate horizontal, vertical, rotary and three-dimensional movements.
Application
Darg chains have been widely used in CNC machine tools, electronic equipment, glass machinery, injection molding machine robots, handling machinery, plastic machinery, lifting equipment, woodworking machinery, automotive industry, industrial vehicles, metal processing machines, machine tools, casting machinery, port equipment And other industries.
Bridge Type Non-opening Cable Drag Chains | Black Plastic Cable Wire Carrier | Bridge Non-Opening Cable Chains |
Parameter Drag Chain
Micro D.T WFZ.G10 series-bridge no opened
Movement direction
Overhead length curve
1. Internal Height
2. Installation Length
Vertical up=Max0.8m
Vertical down＝Max0.3m
Lateral running＝Max0.2m
3. Parameter Drag Chain
- Chain length[L=S/2+K]Installation length of chain, S=travel distance, K=bending length
- Patch=15
- Link Per meter=67
Model | Inner height | Inner width | External height | External width | Bending radius |
D.T WFZ.GI 10.K10 | 10 | 10 | 13 | 16 | 18 |
D.T WFZ.GI 10.K15 | 15 | 21 | 28 | ||
D.T WFZ.GI 10.K20 | 20 | 26 | 38 |
R | 18 | 28 | 38 |
H | 49 | 69 | 89 |
D | 40 | 50 | 60 |
K | 90 | 120 | 150 |
4. Parameter of Joint
Model | Specification | A | B | C | D | E |
D.T10.10.JLY.JLG | 10*10 |
8 |
7 |
25 |
4*7L |
15 |
D.T10.15.JLY.JLG | 10*15 | |||||
D.T10.20.JLY.JLG | 10*20 |
5. 10 Series Joint
1. D.T10.10.JLY.JLG
2. D.T10.15.JLY.JLG
3. D.T10.20.JLY.JLG
We are more than happy to manufacture top-of-the-line products for your project. Take a look around our website. If you have a query or you need advice, just contact us. We'll take time to help you.
