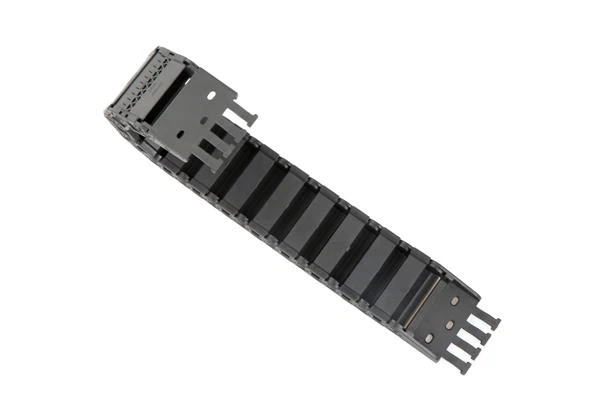

Plastic Cable Drag Chain Wire Carrier
Most drag chains have a rectangular cross section, inside which the cables lie. Cross bars along the length of the carrier can be opened from the outside, so that cables can be easily inserted and plugs connected. Internal separators in the carrier separate the cables. Cables can also be held in place with an integrated strain relief. Mounting brackets fix the ends of the carrier to the machine.
Application
Widely used for machine tools, cranes, car washes, medical and laboratory equipment, automatic warehousing, forklifts, industrial robots, offshore oil rigs and stage technology.
High load D.T WFZ.G25 series-bridge side open
Movement Direction
Overhead Length Curve
1. Internal Height
Suitable for cable ＜∮22mm
2. Installation Length
Vertical up=Max2.2m
Vertical down＝Max45m
Lateral running＝Max1m
3. Parameter Drag Chain
- Chain length[L=S/2+K]Installation length of chain, S=travel distance, K=bending length
- Patch=44
- Link Per meter=23
Model | Inner height | Inner width | External height | External width | Bending radius |
D.T GFZ.G25.K25 | 25 | 25 | 37 | 46 | 55 75 100 125 150 200 |
D.T GFZ.G25.K38 | 38 | 59 | |||
D.T GFZ.G25.K50 | 50 | 71 | |||
D.T GFZ.G25.K57 | 57 | 78 | |||
D.T GFZ.G25.K77 | 77 | 98 | |||
D.T GFZ.G25.K103 | 103 | 124 | |||
D.T GFZ.G25.K125 | 125 | 146 | |||
D.T GFZ.G25.K150 | 150 | 171 |
R | 55 | 75 | 100 | 125 | 150 | 200 |
H | 147 | 187 | 237 | 287 | 337 | 437 |
D | 116 | 141 | 166 | 191 | 216 | 266 |
K | 230 | 322 | 414 | 506 | 598 | 782 |
4. Parameter of Joint
Model | Specification | A | B | C | D | E | F |
D.T.G25.JLG.JLY | 25*25 | 11 | 40 | 11 | 5.5 | 46 | 16 |
25*38 | 53 | 59 | |||||
25*50 | 65 | 71 | |||||
25*57 | 72 | 78 | |||||
25*77 | 92 | 98 | |||||
25*103 | 118 | 124 | |||||
25*125 | 140 | 146 | |||||
25*150 | 165 | 171 |
5. 25 Series Joint
