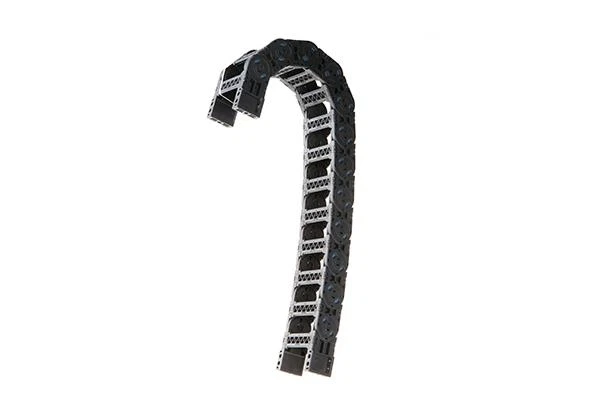

Plastic Drag Chain Cable Carrier
Drag chain, also known as cable carrier, is a device that binds cables or wires or air pressure pipes and oil pressure pipes to facilitate their rotation and movement. Each of each verse can open, convenient in installation and maintenance.
Application
Drag chain has been widely used in CNC machine tools, electronic equipment, glass machinery,injection molding machine, manipulator, lifting and transportation equipment and automated warehouse,etc.
Plastic Drag Chain Cable Carrier | Black Plastic Drag Chain Cable Carrier | Drag Chain Cable Carriers |
Parameter
Model | Inner height | Inner width | External height | External width | Bending radius |
DT GFZ.G35.K50 | 35 | 50 | 47 | 71 | 75 100 125 150 200 |
D.T GFZ.G35.K57 | 57 | 78 | |||
D.T GFZ.G35.K77 | 77 | 98 | |||
D.T GFZ.G35.K103 | 103 | 124 | |||
D.T GFZ.G35.K125 | 125 | 146 | |||
D.T GFZ.G35.K150 | 150 | 17 |
R | 75 | 100 | 125 | 150 | 200 |
H | 197 | 247 | 297 | 347 | 447 |
D | 162 | 187 | 212 | 237 | 287 |
K | 365 | 473 | 532 | 591 | 768 |
High load D.T GFZ.G35 series-totally bridge side open
Movement direction
Overhead length curve
1. Internal height
Suitable for cable ＜∮31mm
2. Installation length
Vertical up=Max2.5m
Vertical down＝Max47m
Lateral running＝Max1m
3. Parameter
- Chain length[L=S/2+K]Installation length of chain, S=travel distance, K=bending length
- Patch=56
- Link Per meter=18
4. Parameter of joint
Model | Specification | A | B | C | D | E | F |
D.T.G35.JLG.JLY | 35*50 | 22 | 55 | 13 | 6 | 71 | 22 |
35*57 | 68 | 78 | |||||
35*77 | 92 | 98 | |||||
35*103 | 118 | 124 | |||||
35*125 | 140 | 146 | |||||
35*150 | 165 | 171 |
5. 35 series joint
